    Roll Compactor

    Roll Compactor

    500000.00 INR/Unit

    Product Details:

    • Type Roll Compactor
    • Material Metal
    • Computerized No
    • Voltage 220-440 Volt (v)
    • Color Silver
    • Click to View more
    X

    Roll Compactor Price And Quantity

    • 1 Unit
    • 500000.00 INR/Unit

    Roll Compactor Product Specifications

    • 220-440 Volt (v)
    • No
    • Silver
    • Metal
    • Roll Compactor

    Roll Compactor Trade Information

    • Telegraphic Transfer (T/T)
    • 1 Unit Per Day
    • 3-4 Days
    • Wooden Box
    • All India

    Product Description

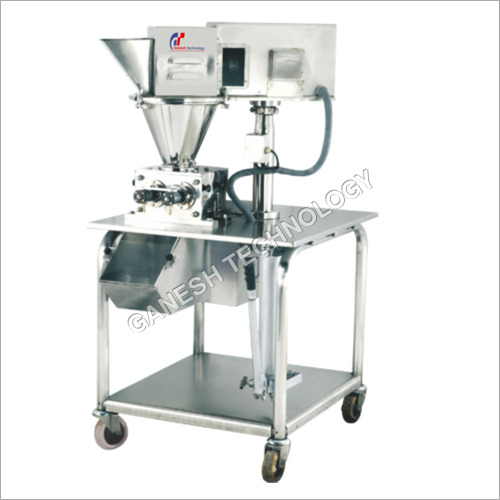

    With the rich industry experience, we are offering our superior quality array of Roll Compactor, that is used in increasing the bulk density, minimizing the size of the ingredients, offering processing which is dust free, preparing granules. The offered range is demanded in various laboratories, chemical and pharmaceutical industries. Roll Compactor has two counter rotating rolls, which forces and press the raw materials into flakes. Additionally, this range is available in different sizes, models and specifications at reasonable prices.

    Technical specification:

    Model

    GT-RC-200/50

    GT-RC 200/75

    GT-RC 200/100

    GT-RC 200/150

    GT-RC 200/200

    Output

    20 to 60 Kg/Hr.

    75 to 100 Kg/Hr.

    100 to 250 Kg/Hr.

    100 to 350 Kg/Hr.

    150 to 400 Kg/Hr.

    Roll size

    Ø 200 mm x 50 mm Width

    Ø 200 mm x 75 mm Width

    Ø 200 mm x 100 mm Width

    Ø 200 mm. x 150 mm Width

    Ø 200 mm. x 200 mm Width

    Roll surface (Selection depends upon material characteristics)

    Corrugated
    Plain
    Knurled
    Briquetted

    Corrugated
    Plain
    Knurled
    Briquetted

    Corrugated
    Plain
    Knurled
    Briquetted

    Corrugated
    Plain
    Knurled
    Briquetted

    Corrugated
    Plain
    Knurled
    Briquetted

    Roll speed (Step pulley drive)

    5 to 25 RPM

    5 to 25 RPM

    5 to 25 RPM

    5 to 25 RPM

    5 to 25 RPM

    Feed screw speed (Through Mechanical Variator)

    10 to 60 RPM

    10 to 60 RPM

    10 to 60 RPM

    10 to 60 RPM

    10 to 60 RPM

    Roll drive Motor

    5 HP/ 960 RPM/ 3 Ph.

    5 HP/ 960 RPM/ 5 Ph.

    7.5 HP/ 960 RPM/ 3 Ph.

    10 HP/ 960 RPM / 3 Ph.

    10 HP/ 960 RPM / 3 Ph.

    Feed screw drive motor

    3 HP / 1440 RPM/ 3 Ph.

    3 HP / 1440 RPM/ 3 Ph.

    3 HP / 1440 RPM/ 3 Ph.

    5 HP/ 1440 RPM / 3 Ph.

    5 HP/ 1440 RPM / 3 Ph.
